Quality Standards and Classification

• SFDA: Class Ilb
• Anti-electroshock degree:
  Classlequipment
  (internal power supply)
• TEMP/SpO 2/NIBP: BF
• ECG/Resp: CF

Application Range

• Adult/Pediatric/Neonatal/Medicine/Surgery/Operating Room/ICU/CCU

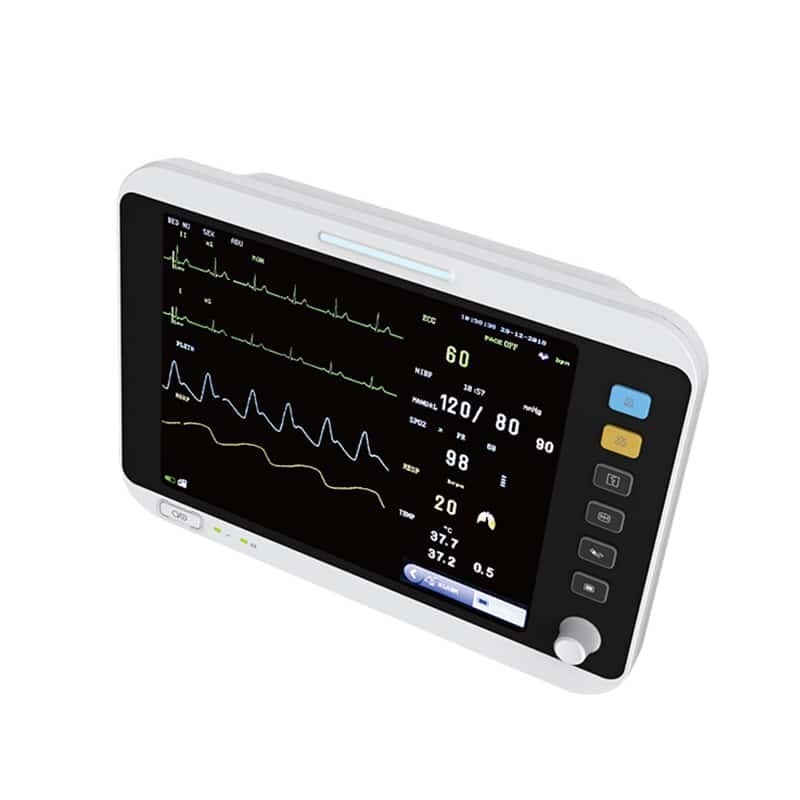

Display

• 12.1″ real color TFT screen

Environment

Operating Environment:

• Temperature: 0 ~ 40 °C
• Humidity: 15% ~ 80%
• Pressure: 86.0 kPa ~ 106.0kPa

Transport and Storage Environment :

• Temperature: -20 ~ 55°C
• Humidity: 10% ~ 90%
• Pressure: 86.0 kPa ~ 106.0kPa

Power Requirements

• AC: 100 ~ 240V, 50Hz/60Hz
• DC: Built-in rechargeable battery
• Battery: 11.1V 24wh Li-ion battery
  2h operating after full charge
  5min operating after low battery alarm

Dimension and Weight

• Equipment:
  340mmx245mmx 134 mm(about);
  2.798kg(about)
• Package:
  380mm ×350 mm × 300mm(about);
  4.598kg(about)

Date Storage

• Trend diagram/table: 720h
• NIBP review: 10000 events
• Wave review: 12h
• Alarm review: 200 alarm events
• Support drug concentration titration analysis

ST Segment

• ST Segment Range: -2.0mV ~
  +2.0mV
• Accuracy: 0.02mV

ECG

• 5 Leads: RA, LA, LL, RL, V
• Lead mode: I,II, III, AVR, AVL, AVF, V
• Gain: × 1.25mm/mV,2.5mm/mV,
  5.0mm/mV, 10mm/mV,
  20mm/mV (error ≤ 5%)
• Sweep speed:
  6.25mm/s, 12.5mm/s,25mm/s,
  50mm/s (error ≤ ‡ 10%)
• Bandwidth: Surgery 1 ~ 25 Hz
• Monitor 0.5 ~ 40 Hz
• Diagnostic 0.05 ~ 130 Hz
• Sensitivity. >200 VP-P
• CMRR: ≥ 112dB
• Differential Input Impedance: >5M
• ohm Electrode Offset Potential: +300mV
• Polarization Voltage: ≥ + 500mV
• Input Impedance: ≥ 5 M
• Calibration Voltage: 1mV 5%

Trend Data Length

• School limit list: 400 groups
• Waveform playback: 6000 seconds
• Trend table: 7 days
• Trend graph: up to 7 days
• Alarm review : 60 groups

NIBP

• Method: Oscillometry
• Measure mode: Manual, Auto, STAT
• Measure interval in auto mode:
  1~5/10/15/30/60/90/120/180/
  240/480min
• Measure period in STAT mode: 5min
• Pulse rate range: 40 ~ 240bpm
• Measure & alarm range: Adult
  SYS 40 ~ 280mmHg
  DIA 10 ~ 220mmHg
  MEAN 20 ~ 240mmHg
  Pediatric
  SYS 40 ~ 220mmHg
  DIA 10 ~ 160mmHg
  MEAN 20 ~ 170mmHg
  Neonatal
  SYS 40 ~ 135mmHg
  DIA 10 ~ 100mmHg
  MEAN 20 ~ 110mmHg
• Static pressure measurement
• Range: 0 ~ 300mmHg
• Accuracy: ‡ 3mmHg
• Resolution: 1mmHg Accuracy:

• Max. Mean Error: + 5mmHg
• Max. Standard Deviation: 8mmHg
• Overpressure protection:
• Adult 300mmHg
• Pediatric 240mmHg
• Neonatal 150mmHg

Sp02

• Measurement range: 0 ~ 100%
• Resolution: 1%
• Accuracy: 70% ~ 100% ‡ 2%
  40% ~ 69% ÷ 3%

Pulse Rate

• Measure/alarm range: 20 ~ 300bpm
• Resolution: 1bpm
• Accuracy: ‡ 3bpm

RESP

• Method: impedance between RA-LL
• Resp Impedance range: 0.3 ~ 30
• Base Impedance range: 200 Q ~ 4000 0
• Bandwidth: 0.3 ~ 2.5Hz
• Gain: × 0.25, × 0.5, x 1, × 2, x 4
• Resp rate:
  Measurement Range
  Adult 0 ~ 120BrPM
  Neonatal/Pediatric 0 ~ 150BrPM
• Resolution: 1BrPM
• Accuracy: 7 ~ 150BrPM (‡ 2BrPM)
  0 ~ 6BrPM (unspecified)
• Apnea Alarm: 10 ~ 40s

TEMP

• Channel 2
• Measure & alarm range: 0 ~ 50 °C
• Resolution: 0.1 °C
• Accuracy (no sensor): #0.1 °C (0~50 °C)

Standard Accessories

• NIBP cuff & tube
• ECG cable & electrodes
• Sp02 sensor
• TEMP probe
• Lithium-ion battery
• Power cable
• Operator’s manual

Optional

• Etco2 (Optional)
• Dual IBP (Optional)
• Nellcor Spo2 (Optional)
• Suntch Nibp (Optional)
