Quality Standards and Classification

• CE, ISO13485
• SFDA: Class Ilb
• Anti-electroshock degree:
  Classlequipment
  (internal power supply)
• TEMP/SpO 2/NIBP: BF
• ECG/Resp: CF

Application Range

• Adult/Pediatric/Neonatal/Medicine/Surgery/Operating Room/ICU/CCU

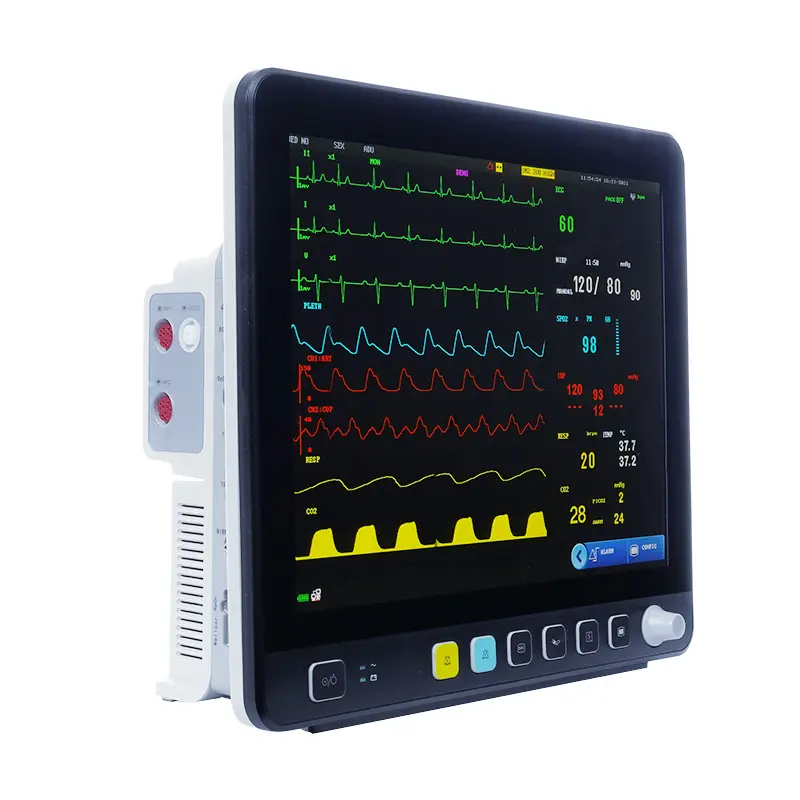

Display

• 15″ real color TFT screen
• Resolution:1024*768
• One alarm indicator (yellow/red)
• One working indicator(green)
• One battery charge
  stateindicator(green)
• Three modes in accordance with the

Environment

Operating Environment:

• Temperature: 0 ~ 40 °C
• Humidity: ≤85%
• Altitude: -500~4600m

Transport and Storage Environment:

• Temperature: -20~60 °C
• Humidity: ≤93%
• Altitude: -500~13100m

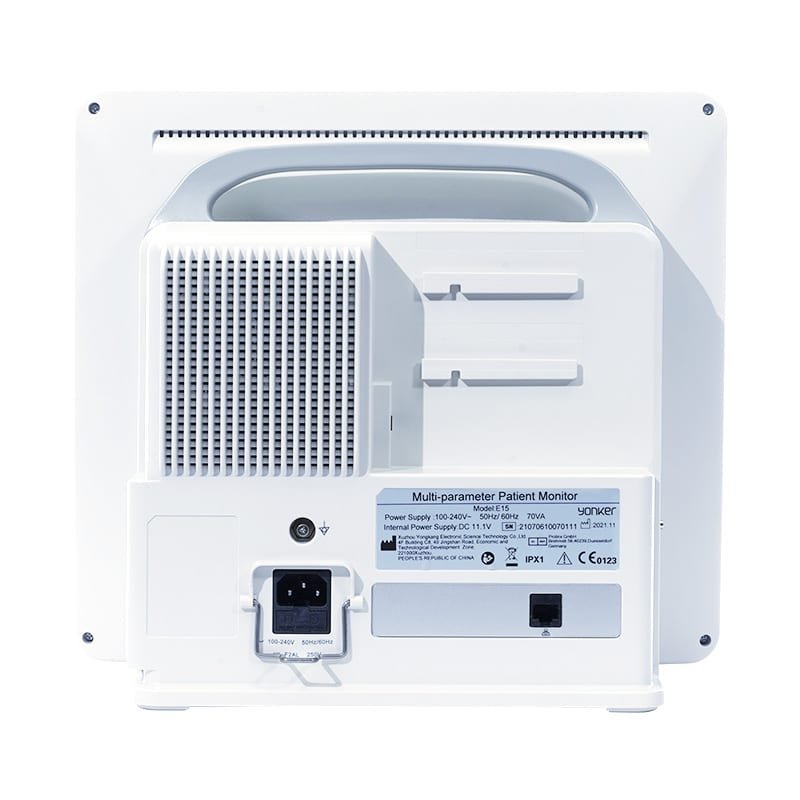

Power Requirements

• AC: 100 ~ 240V, 50Hz/60Hz
• DC: Built-in rechargeable battery
• Battery: 2000mA11.1V lithium battery
  2h operating afterf ull charge(one piece)
  5min operating after low battery alarm

Dimension and Weight

• Equipment:

360mmx162mmx321 mm(about);

5.5kg(about)

420mm x300 mm x 285mm(about);

6.5kg (about)

Date Storage

• Trend diagram/table: 7x24h
• NIBP review: 400 events
• Wave review: 100min
• Alam review: 100 alarm events
• Support drug concentration titration analysis

ST Segment

• ST Segment Range: -2.0mV ~ +2.0mV
• Accuracy: 0.02mV
  Pulse Rate
• Range: 20 ~ 300bpm
• Resolution: 1bpm
• Precision: ≤3bpm

ECG

• 5 Leads: RA, LA, LL, RL, V
• Lead mode: I,lI, III, aVR, aVL, aVF, V Increase: ×250, ×500, x1000,
• Sensitivity: > 200 uV (Peak-to-peak
• Input impedance: > 5 ( megohm)
• Bandwidth: Surgery 1 ~ 20 Hz
• Monitor 0.5 ~ 40 Hz
• Diagnostic 0.05 ~ 130 Hz
• CMRR 100dB
• Polarization Voltage: ‡ 300 mV
• Baseline Recovering Time: After defibrillation< 3 seconds
• Signal Range: 8 mV (Peak-to-peak
• Calibrating Signal: 1mV, precision
• Heart rate range: 15-380bmp
• Heart rate accuracv.+/-1%

RESP

• Method: RA-LL impedance
• Resp Impedance range: 0.3 ~ 3
• Base Impedance range: 200 ~ 4000
• Bandwidth: 0.1 ~ 2.5Hz
• Resp rate: Adult 0 ~ 120BrPM
• Neonatal/Pediatric 0 ~ 150BrPM
• Resolution: 1BrPM
• Precision: ‡2 BrPM
• Asphyxia Alarm: 10 ~ 40 seconds

NIBP

• Method: Pulse wave oscillometry
• Work mode: Manual/ Auto/ STAT
• Measure interval of auto mode:
  1,2,3,4,5,10, 15,30,60,90,120,180,
  240,480 minute(s)
• Measuring Time of STAT Mode: 5 minutes
• PR range: 30 ~ 250bpm
• Measure & alarm range: Adult
  SYS 40 ~ 270mmHg
  DIA 10 ~ 215mmHg
  MEAN 20 ~ 235mmHg
  Pediatric
  SYS 40 ~ 200mmHg
  DIA 10 ~ 150mmHg
  MEAN 20 ~ 165mmHg
  Neonatal
  SYS 40 ~ 135mmHg
  DIA 10 ~ 100mmHg
  MEAN 20 ~ 110mmHg
• Static pressure range: 0 ~
  300mmHg
  Precision: $ 3mmHg
• Pressure precision:
  Max. average error: $5mmHg
  Max. standard deviation: $8mmHg
• Overvoltage protection:
  Adult 300mmHg
  Pediatric 240mmHg
  Neonatal 150mmHg

SpO2

• Range: 0 ~ 100%
• Resolution: 1%
• Precision: 70% ~ 100%: $2 DIGIT 0% ~ 69%: no definition given

TEMP

• Channel 2
• Measure & alarm range: 0 ~ 50 °C
• Resolution: 0.1 °C
• Precision (no sensor): ≤0.1 °C

IBP (Optional )

• Label ART, PA, CVP, RAP, LAP, ICP, P1, P2
• Measuring and alarm range
• ART 0 ~ 300 mmHg
• PA-6 ~ 120 mmHg
• CVP/RAP/LAP/ICP -10 ~ 40 mmHg
• P1/P2-10 ~ 300 mmHg
• Press Sensor
• Sensitivity 5 uV/V/mmHg
• Impedance 300-3000
• Resolution: 1 mmHg
• Accuracy: #2% or £1mmHg, which great
• Actualization interval: about 1 Sec.

CO2 (Optional)

• Side/Main stream
• Warm-up time:when the ambient temperature is 25 °C, the carbon dioxide curve(capnogram) can be displayed within 20/15 seconds, and all the specifications can be fulfilled within 2 minutes.
• Measurement range:0-150mmHg, 0-19.7%,0-20kPa (at 760mmHg), atmospheric pressure provided by the
• Resolution 0.1mmHg : 0-69mmHg
  0.25mmHg: 70-150mmHg
• Precision 0-40mmHg: #2mmHg
  41-70mmHg: #5% (reading)
  71-100mmHg: +8% (reading)
  101-150mmHg: #10% (reading)
• Respiratory rate range 0- 150 BPM
• Respiratory rate accuracy: #1 BPM

Standard Accessories

• NIBP cuff & tube
• ECG cable & electrodes
• Sp02 sensor
• TEMP probe
• Lithium-ion battery
• Power cable
• Operator’s manual

Optional

• CO2 modular (Optional)
• IBP modular (Optional)
• Touch screen (Optional)
• Trolley bracket (Optional)
• Hanging bracket (Optional)
• Monitor recorder (Optional)
• Wifi (Optional)
