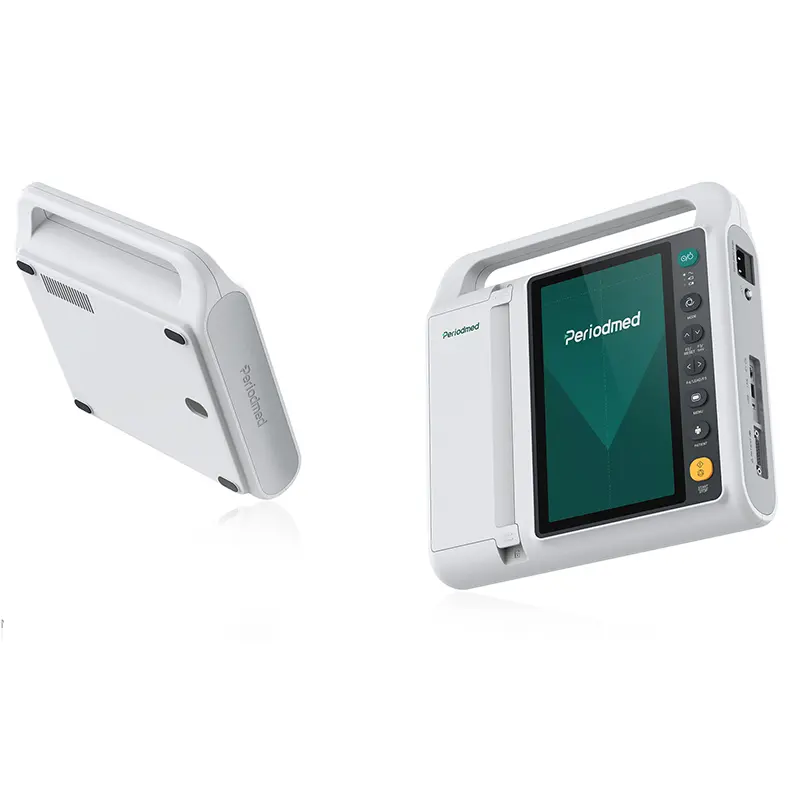

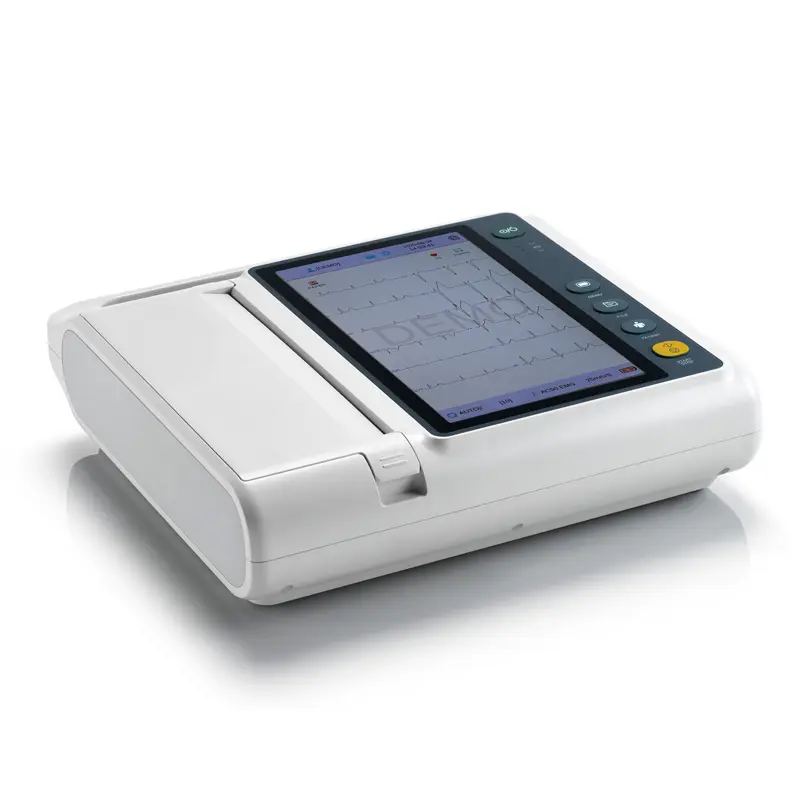

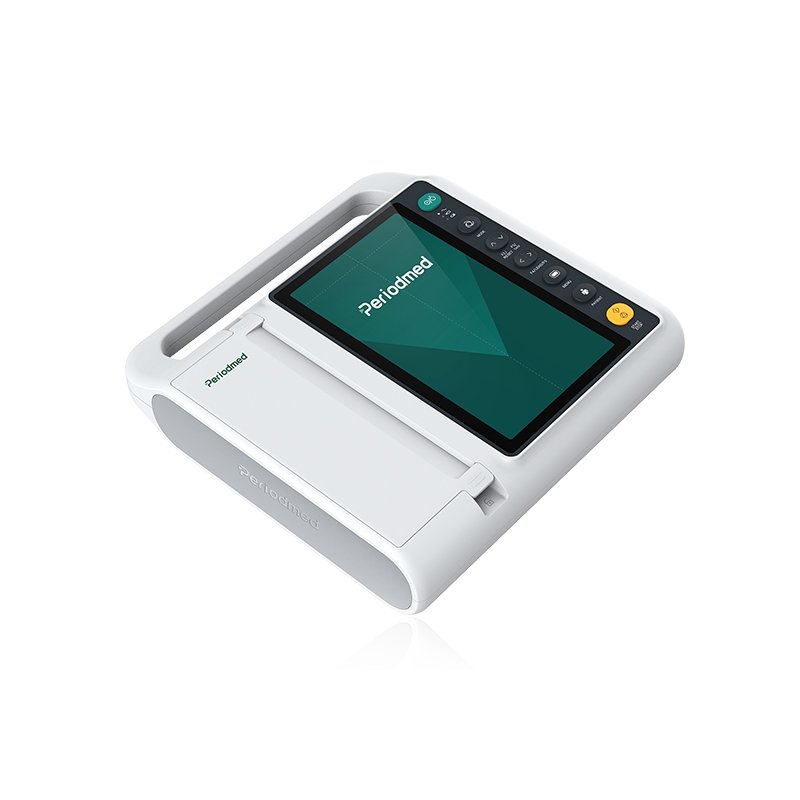

New PE-E12B Portable ECG Monitor

For information about the pricing and offers related to this product, please connect with us via the button below or on WhatsApp.

Product Categories:

Model: PE-E12B

Display: 9-inch LCD screen

Working mode: Manual/Auto/R-R/Store

Filter: AC Filter: 50Hz/60Hz EMG Filter:25Hz/45Hz Anti-Drift Filter: 0.15Hz(adaptive)

Power requirement: AC: 110 ~ 230V, 50Hz/60Hz

DC: built-in rechargeable 14.4v 4400mAh

Origin: Jiangsu Province, China

Lead	Standard 12 leads	Time constant	≥3.25
Lead acquisition	32000Hz(synchronously)	Frequency response	0.05~160Hz(-3db)
Work mode	Manual/Auto/R-R/Store	Noise level	<15HVp-p
Filter	AC Filter: 50Hz/60Hz EMG Filter:25Hz/45Hz Anti-Drift Filter: 0.15Hz(adaptive)	Inter-channel interference	<0.5mm
Filter		Sensitivity	Auto,2.5,5,10,20,40mm/mV(≤3%)
CMRR	>120dB(with AC Filter)	Recording mode	3ch+++,6ch,6ch+,12ch
Input Circuit	Floating; Protection circuit against	Paper speed	6.25,12.5,25,50mm/s($3%)
Input Circuit	defibrillator effect ≥50 MO	Recording Paper	210mmx30m roll thermal paper
Inputimpedance	defibrillator effect ≥50 MO	Power supply	AC:110-230V(‡10%),50/60Hz,40VA
Input circuit current	<0.05 HA	Power supply	DC: Built-in rechargeable Li-ion battery,
Patient current leakage	<10 MA		14.4V,4400mAh
Calibrating voltage	1mV‡2%	Communication Port	USB, UART
Voltage tolerance	> +500mV	Dimension/Weight	310mmx278mmx76mm,3.0kgs

PRODUCT FEATURES

Portable, delicate design, easy to cooperate.
Accurate pulse pace identification; High accuracy digital filter & auto baseline adjustment.
12 leads synchronously acquisition and record; recording mode 3ch++t, 6ch, 6ch+, 12ch.
Four working modes: Manual/Auto/R-R/ Store.
800×480 graphic,9inch color touch LCD to display ECG information.
400 patient cases storage and replay (internal SD card is optional).
With freeze function offreezing 12 seconds ECG.

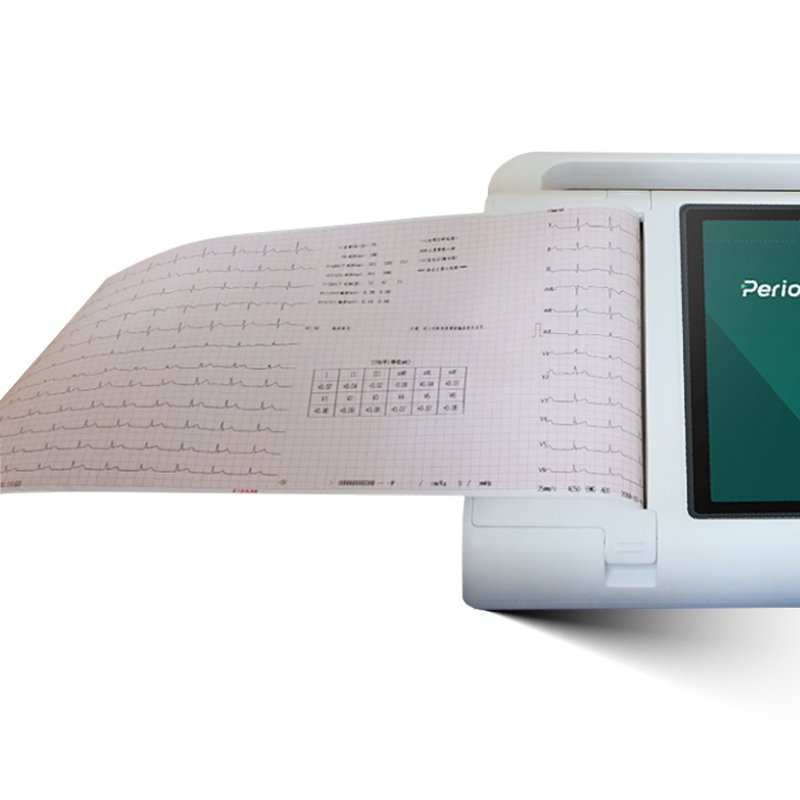

210mmx30m, roll paper, high resolution thermal printing (optional for Z-fold paper).
Rechargeable Li-ion battery supports continuously working for about 18 hours.
USB and UART port support USB flash storage and laser printer printing.
PC ECG management software is optional.
Measurement:310mmx278mmx76mm,3.0kgs.
