Quality Standards and Classification

• Anti-electroshock degree:
• Classlequipment
  (intemal power supply)
• Protection degree of fluid intake: IPX1

Application Range

• It is suitable on adult children and newborn patients .It can be used during the operation, post-anaesthetic recovery after the operation and so on.

Display

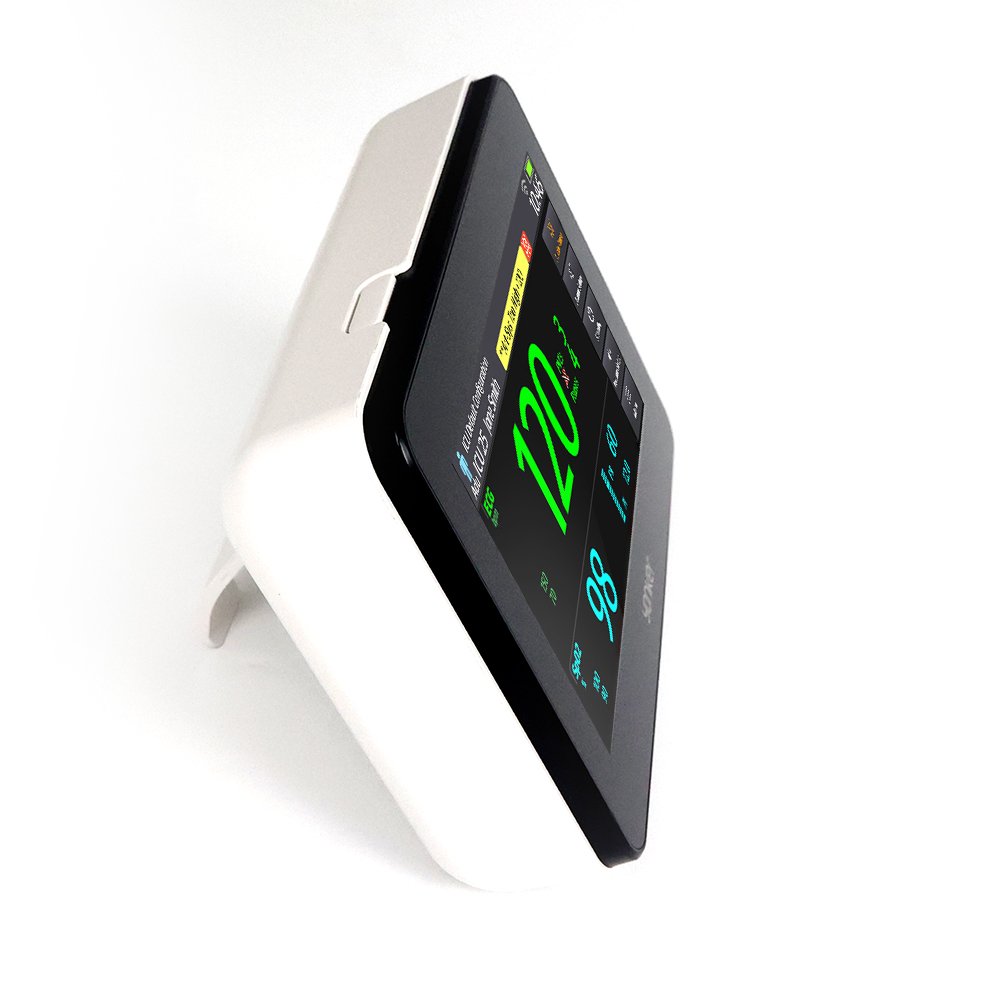

• 7-inch color LCD display

Environment

working environment conditions

• Ambient temperature range: +5°C~40 °C;
• Relative humidity range: 15% ~ 80%, no condensation
• Atmospheric pressure range: 60 ~ 107kPa;

Shipping and storage conditions

• Ambient temperature: -20°C~+55°C
• Atmospheric pressure: 16kPa~ 107kPa
• Humidity range: 10% ~ 95%

Electrical Specifications

• Input: AC 100~240V AC,
• Power frequency: 50/60Hz,
• Maximum input power: 70VA
• Fuse specification: 2AL 16V
• Working method: continuous work
• Internal lithium battery: d.c 7.4V
  Not less than 2000 mAh

Dimension and Weight

• Product Size 246.5*146.4*50.7mm
• Product weight 950g

ECG

• Gain: X0.25, X0.5, X1, X2, Auto
• Timebaseline selection:
  12.5mm/s, 25mm/s, 50mm/s
• Sensitivity > 200uV (peak-to-peak)
• bandwidth:

• Diagnostic mode: 0.05~130Hz
• Monitoring mode: 0.5~40Hz
• Operation mode: 1~20Hz
• Common Mode Rejection Ratio:
• Diagnostic mode: >90dB
• Custody mode: >100dB
• Operation mode: >100dB

NIBP

• Adult systolic blood pressure: 40 ~ 270mmHg
• Diastolic blood pressure: 10 ~ 210mmHg
• Average pressure: 20~230mmHg
• Children systolic blood pressure: 40~200mmHg
• Diastolic blood pressure: 10 ~ 150mmHg
• Average pressure: 20~ ~165mmHg
• Neonatal systolic blood pressure: 40 ~ 135mmHg
• Diastolic blood pressure: 10 ~ 95mmHg
• Average pressure: 20~110mmHg
• Static pressure range: 0 ~300mmHg
• Static pressure accuracy: 3mmHg
• Blood pressure accuracy:
• maximum average error 5mmHg;
• maximum standard deviation 8mmHg

Overvoltage Protection:

• Adult mode: 300 mmHg#10mmHg
• Child mode: 240mmHg$10mmHg
• Neonatal mode: 150mmHg$10mmHg

Sp02

• Measuring range 0 ~ 100%
  Resolution 1%
• The accuracy is within the range of 70% to 100%, and the measurement error should be +4%;
• In the range of 0% to 69%, the measurement error is undefined

Pulse Rate

• Measuring range 25~250bpm
• Resolution 1bpm
• Accuracy ‡3bpm
• Refresh time 1s

Heart rate

• 15 to 300 bpm for adults (beat / min)
• Newborn / child 15-350 bpm (beat / min)
• Accuracy: ‡ 1% or ‡ 1 bpm, take the large on

Temperature

• Range 0~50°C
• Resolution 0.1°C
• Accuracy +0.1°C (without probe error)

RESP

• Adjustment range for RESP alarm upper limit and lower limit:

limit and lo

120

Max. upper limit

Min. lower limit single time adjustment

0

Standard accessories

• ECG lead line
• Cuff
• SpO 2 sensor
• TEMP probe
• Lithium-ion battery
• Power cable
• Operator’s manual

Optional accessories

• Etco2 (optional)
• Wired Wifi (optional)
