Quality Standards and Classification

CE, ISO13485
SFDA: Class Ilb
Anti-electroshock degree:
Classlequipment
(internal power supply)
SpO 2/NIBP: BF

Application Range

• Adult/Pediatric/Neonatal(Necllor SpO2)/Medicine/ Surgery

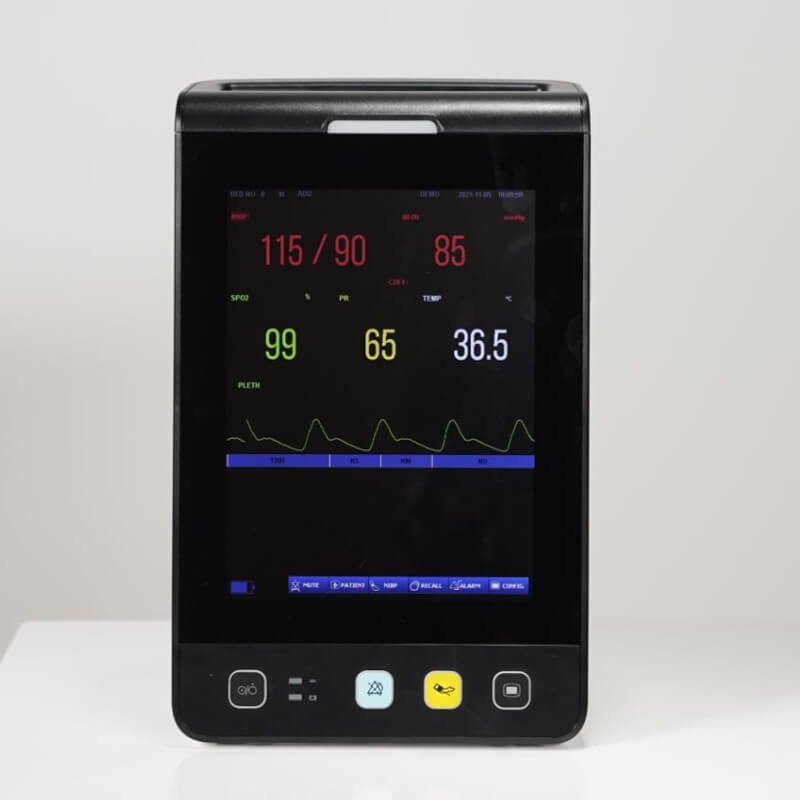

Display

8″ real color TFT screen
Resolution: 800*600
One alarm indicator
One working indicator
One battery charge state indicator

Environment

Operating environment:

Temperature: 0-40 C
Humidity: 15%-80%
Pressure: 86.0 kPa- 106.0kPa

Transport and Storage environment

Temperature:-20-55 C
10%~90%
Pressure: 86.0 kPa-106.0kPa

Power Requirements

Power Requirements
AC:100~240V,50Hz/60Hz
DC: Built-in rechargeable battery
Battery: 11.1V 24wh Li-ion battery
2h operating after full charge
5min operating after low battery alarm

Dimension and Weight

164.2mm x 270.2mm x128.7 mm 2.5kg(about)
Package:360*250*290mm 4kg(about)

Date Storage

Trend diagram/table: 720h
NIBP review. 1000 group
Wave review 12h
Alam revie 200 alarm events

Sp02

Measurement range: 0-100% Resolution
Accuracy: 70%~100% 2% 40%~69% +3%

Temp

Channel 2
Measure & alarm range: 0 ~ 50 °C
Resolution: 0.1 °C Accuracy (no sensor) 0.1 °C (0~50 °C)

Pulse Rate

Measure/alarm range: 20- 300bpm
Resolution: 1bpm
Accuracy.#3bpm

NIBP

Method Oscillometry
Measure mode: Manual Auto, STAT
Measure interval in auto mode
1-5/10115/3060/90/120/180/240/480m
Measure period in STAT mode: 5min
Pulse rate range: 40- 240bpm
Measure &alarm range:

Adult

SYS 40-280mmHg

DIA 10~ 220mmHg

MEAN 20-240mmHg

Pediatric

SYS 40~220mmHg

DIA 10-160mmHg

MEAN 20- 170mmHg

Neonatal

SYS 40~135mmHg

DIA 10- 100mmHg

MEAN 20-110mmHg

Static pressure measurement

Range: 0 -300mmHg
Accuracy. #3mmHg
Resolution: 1 mmHg Accuracy
Max Mean Error: # 5mmHg
Max Standard Deviation: 8mmHg

Overpressure protection

Adult 300mmHg
Pediatric 240mmHg
Neonatal 150mmHg

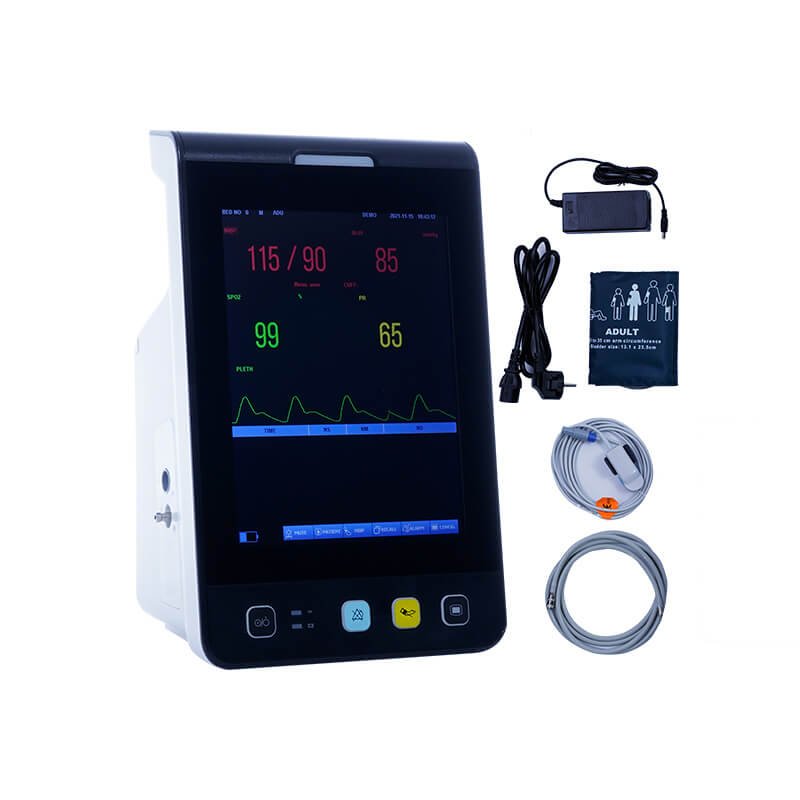

Standard accessories

NIBP cuff&tube
Sp02 sensor
Temp sensor(optional)
Lithium-ion battery
Power cable
Operators manual

Optional

Nellcor spo2
Suntech NIBP
